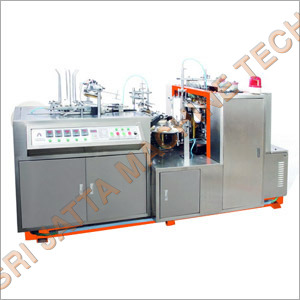

Facilitated with superior technology and a team of proficient experts, we are able to bring forth a durable range of Paper Cup Machinery JBZ B. This machine runs a whole procedure of paper-feeding, cup-fan-wall sealing, oiling, bottom-punching, heating, rolling, rimming, rounding and tripping. It is an idea equipment of producing drinking cup, ice-cream cup and other food cone-shaping containers. This type paper cup machine mainly used to making one side PE coated paper cups from 3 oz to 12 oz or see below details by product. The total electrical unit is In built in machine And looks very compact.
|
Suitable Size
|
3oz-12oz and other special size
|
|
Raw Material
|
Single Side (one side) PE (polyethylene) film coated paper
|
|
Suitable Paper Weight
|
135-320 GSM (Recommend 170-280 GSM)
|
|
Ration
|
Productivity 40-50/min
|
|
Total
|
Power 5KW
|
|
Gross Weight
|
1500kg
|
|
Power
|
220/380V 50Hz
|
|
Overall Dimensions
|
2500Lx1200Wx1400H (mm)
|
Characteristics
- Automatic control adopts optically controlled non-contact switch
- Micro-controlled transducer
- Step-less speed adjustment
- Paper Cup-fan-wall body sealed by heater
- Paper Cup bottom sealed by heater
- Full automatic
- Easy changing molds produce different sizes paper cups
- Easy operating by operator (one operator is enough)
- Easy maintenance with minimum cost
- Cheap operating cost and low investment
- Amelioration: Air compressors aren't required for this type paper cup machine.
|
