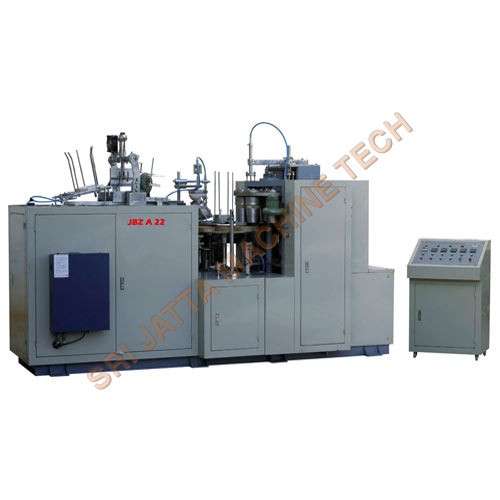

Ultrasonic Paper Cup Forming Machine

Ultrasonic Paper Cup Forming Machine
Ultrasonic Paper Cup Forming Machine
Product Code : 05
Product Description

With an aim to fulfill needs of our respected customers, we are affianced in offering technologically advanced Ultrasonic Paper Cup Forming Machine. This machine is manufactured at our well-equipped production unit using supreme quality components and ultra-modern technology in line with defined set market quality standards. Highly applauded for strong construction and long service life, the provided machine is mainly used for making one side coated paper cups. Further, this Ultrasonic Paper Cup Forming Machine can be availed by our respected client’s at most reasonable rates.

Features:

  • Excellent performance

  • Strong construction

  • Rugged design

  • Long service life

Specifications:

 Paper Cup Size   16-22 oz (mould exchangeable), diameter of bottom cup size, 30mm-60mm diameter of top cup size, 40mm-100mm height of the cup size, 120mm -150mm
 Raw Material   One-side or two-side PE(polyethylene) film coated/laminated paper
 Suitable Paper Weight   250gsm-450 gsm
 Productivity   30-40 pcs / min
 Total Power   7KW
 Power Source   220v/380v 50Hz or other required
 Weight   2000kg
 Package Size (L*B*H)  Main body: 3000*1320*1950mm
 Electric Control Box (L*B*H)  730*600*1100mm
 Packaging  Export Worth Wooden Case
 Working Air Source  Air pressure:0.4MPa, Air Out-put: 1m3/minute
